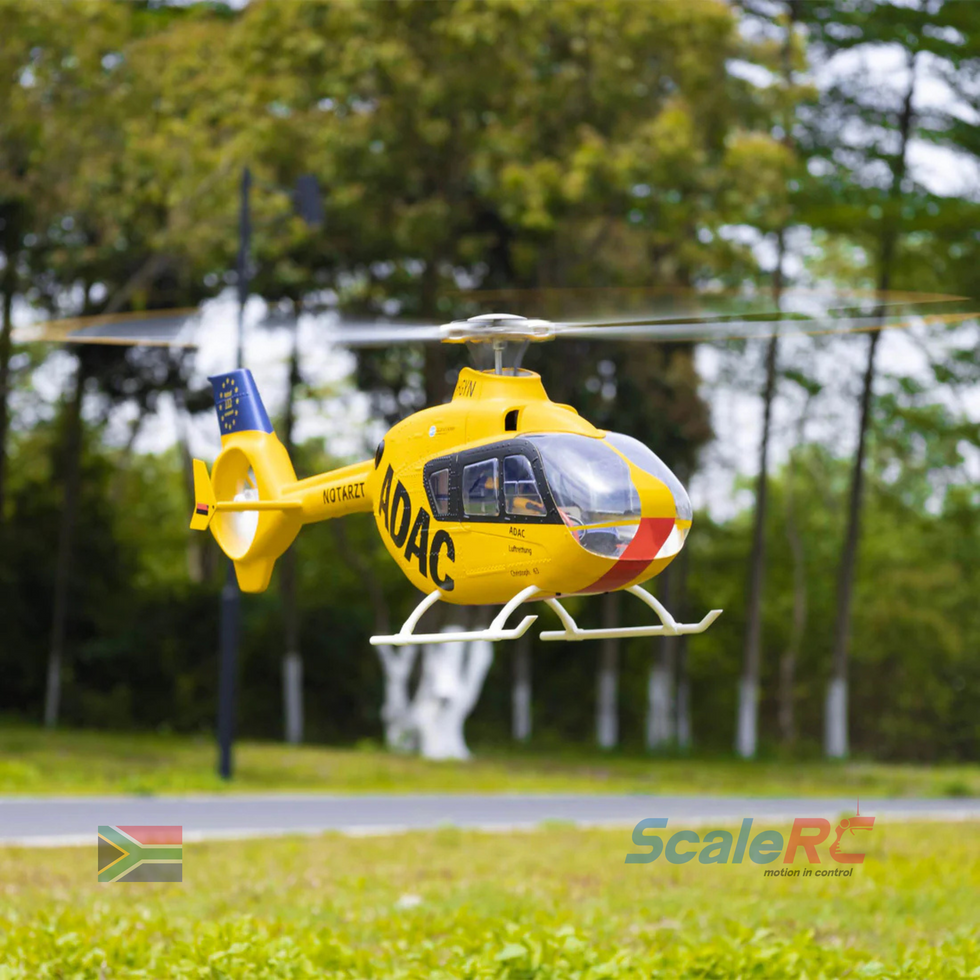

FLYWING EC-135 450L GPS Stabilised - RTF Helicopter

The EC-135, a twin - engine light helicopter from Airbus Helicopters (formerly Eurocopter), evolved from Germany's MBB BO 108. Eurocopter refined it and got it certified for delivery in 1996.Its ducted tail - rotor design ensures low noise and high safety. With a 3.5 - ton max takeoff weight, it cruises at 250 km/h, has a 650 - km range and 4,000 - m service ceiling, adapting well to different weather.Used across medical, law - enforcement, tourism, business and military training sectors, its reliability and performance secure its key place in the global light helicopter.

Efficient power configuration

20+Min Flight Time

16V brushless motor configuration. Compared totraditional

12V, it has stronger power.Combinedwith ESC optimized for the characteristics of themotor, the flight efficiency is greatly improved.

High performance servo

High performance servo with corelessmotor, 4KG. cm torque, 0. 12sec/60 ° high-speedresponse. Helicopters respond quickly. Elliptical output shaft design, no need to debugservo arm.

NACA 8-H-12 airfoil flat convex propeller

The series of airfoils is renowned for its good low-speed performance and high lift coefficient.

This is largely due to the design feature of having a thicker cross-section, which helps to provide greater lift at low speeds. It also means that lower wing loading can be used in aircraft design, thereby improving the takeoff and landing performance of the aircraft.

Stable flying experience

M10N positioning chip

The operation is similar to traditional drones. It supports Beidou positioning assistance and barometric altitude assistance. It can hover at a fixed location and altitude. On open ground, push the stick to move, and release to stop. The operation is simple, allowing for a leisurely and carefree flight experience.

Automatic route mode

The helicopter flies along a horizontal flight path in the air, forming an 8-shaped or circular shape. During automatic flight, the rudder can be used to control the direction of the nose and achieve spin flight.

Multiple security protections

One click/low battery return

EC-135 has the functions of one click return and low battery return. After taking off from an open-air venue, simply press the return switch lightly, and the helicopter will automatically return to the takeoff point and land. When the battery reaches the set voltage value, the helicopter will also automatically return. (The set residual voltage value needs to be sufficient for the helicopter to return).

High-realistic details

Realistic rivets and engraved lines

EC-135 features neatly arranged engraved lines, a simulated four blade metal rotor head, a transparent cockpit cover, and highly restored glossy paint. Make the whole machine closer to reality, and instantly return to that era full of memories.

10 channel transmitter

The remote control distance is about 1 kilometer, the switch position is reasonable, the function is clear, and it is equipped with a dual joystick return center design, allowing you to release it and make the aircraft brake and hover. EC-135 also supports 9-channel and above remote controls with third-party SBUS protocol, meeting your personalized usage needs.

Sensor damping design

Tailored EPDM shock-absorbing material is used to address the vibration characteristics of helicopters. The IMU attitude sensor is suspended in the flight control system to filter out most of the mechanical vibrations of the aircraft. With advanced filtering algorithms, the stability of the aircraft is improved.

M10 GPS Module

The all-new M10 GPS positioning module, combined with omnidirectional positioning technology, brings faster satellite search speed, better signal quality, making helicopter hover more stable, flight more responsive, and return more accurate.

Length (no blades): 795mm
 Main Rotor Span: 810mm
 Tail Rotor Span: 125mm
 Dry Weight: 738g
 Main Motor: 3508 brushless
 Tail Motor: 2008 brushless
 ESC: 60A 32-bit dual ESC
 Flight Modes: GPS Hover / Inverted / Manual 3D / Auto Route
 Hover Accuracy (GPS): ±1.5m (horizontal), ±0.5m (vertical)
 Flight Time: \~20+ minutes
