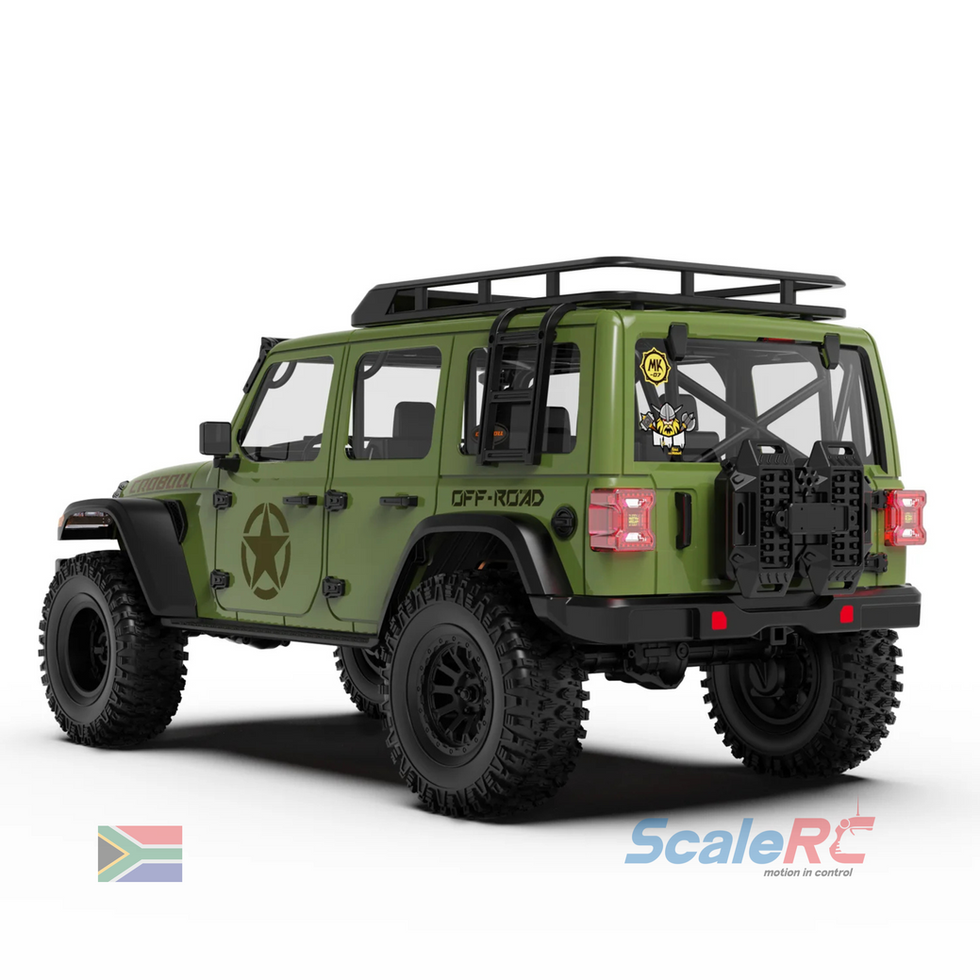

Rlaarlo 1/7 Scale 4WD Brushed MK-07 RC Crawler

• MK-07 is a top-of-the-line model for off-road enthusiasts, offering an authentic and exciting off-road experience that brings unrivaled fun to off-road enthusiasts
• Designed with the challenge of complex road conditions in mind, it features front and rear axles made of high-strength nylon and high-carbon steel alloy driveshafts, as well as a high suspension system to ensure stability and passing performance
• The drivetrain with chrome steel gear set and thrust bar design enables it to cope with any complex environment and fearless climbing challenges

- SIMULATION OF CAR BODY DESIGN-

With its 439mm wheelbasetire diameter 145mm, as well as 58mm tire width, the MK-07 offers off-road enthusiasts a more realistic off-road experience. This design not only enhances the vehicle's stability, but also gives it the ability to challenge complex road conditions, making it an ideal partner for off-road adventures

- BATTERY AND CHARGER SOLD SEPARATELY -

MK-07 does not come with a battery and charger, enthusiasts need to provide their own batteries (XT60 connector), up to 3S battery support

- KEY FEATURES -

• Gears: The gearbox adopts full CNC chromium steel gears throughout. The motor pinion and spur gear use 1.0CM whilst other transmission gears use 0.8CM, providing reliable durability for the entire gearbox
• Selectable 4WD to 2WD Transmission: Full-time four-wheel-drive transmission design can be alternated between front-wheel drive and rear-wheel drive. Upon encountering difficult obstacles, switching to front-wheel drive can provide more stable power output to overcome obstacles. When encountering downhill obstacles, switching to rear-wheel drive (locking rear wheels) can provide better power to stabilize the vehicle's descent
• Front and Rear Differential Design: The axle adopts 1.2CM gears to enhance durability. These can lock and unlock the front/rear differentials to meet different driving needs and terrain. Unlocking the differentials during driving will provide smoother steering and a tighter steering radius. When the terrain becomes more challenging, locking the rear differential or locking the front differential will allow the tires to obtain better power distribution and allow the vehicle clear the obstacle easier
• High and Low-Speed Can Be Switched On The Go: On flat roads switching to high gear will provide a faster high speed whilst driving on rough roads and extreme terrain using low gear increases torque. This will enable the user to tackle a multitude of terrain
• Twin Friction Plate Slipper Clutch: A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor
• Forward Located Gearbox: Central gearbox design and location reduces the vehicle's center of gravity whilst improving climbing performance and stability by being located more towards the front. Reverse rotation design will help eliminate torque twist
• 3 Link Panhard Steering Link System: Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight
• 8mm Stainless Steel Suspension Rods: The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust
• Oversized Front And Rear Axles: Large size front and rear axle design providing sturdiness and durability whilst allowing more space for the transmission to ensure the durability and fluid movement of the car
• 120mm Full Metal Hydraulic Shock Absorber: Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces
• Powerful Lighting System: Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights and rear hazard, brake, and reverse lights
• Professional Hobby Grade Transmitter with Receiver: 2.4 GHz 8-channel with color LCD Screen,RC transmitter with a 350m range
• 5280 High-Power Brushed Motor: High Torque 5280 brushed Motor,Supports up to 3S Lipo Battery (3 Cell)，Capable of pulling a 1-2 tonne vehicle across a horizontal surface
• Powerful servos:40kg waterproof steering servo with 4 no’s of 25kg servos used for high and low-speed switching, front and rear differential lock and rear-wheel drive

· Dimension: 710mm*325mm*335mm

· Wheelbase: 439mm

· Approach angle: 58°

· Departure angle: 54°

· Ground clearance: 90mm

· Weight: 7kg

· Motor: Brushed 5280

· ESC: Brushed 120A

· Remote control: Color screen, 8 channels, 300 meters range, with light control protocol

· Steering servo: 40KG, waterproof

· Switching servo: 25G

· Battery/Voltage: Brushed 3S

· Max battery length and width: 164*49mm

· Lights: "Integrated light board, headlights with daytime running lights, high beams, low beams; Fender lights with white daytime running lights, sequential turn signals; Grille lights, multiple modes switchable with colored LEDs; Turn signals on side mirrors, roof light, front and rear bumper lights; Tail light board with reverse lights, brake lights, parking lights, turn signals

· Shock: Adjustable thread, CNC metal hydraulic shock absorbers

· Main beam: 6mm thick CNC stainless steel main beam

· Tires: CNC stainless steel tie rods throughout the vehicle - 3 in the front, 4 in the rear, 1 steering push rod, 1 steering tie rod

· Transmission: Selectable high and low speed; switchable between front-wheel drive, rear-wheel drive, and four-wheel drive

· Front and rear differential lock: Independent switch for front and rear differential lock

· Drive shaft: All-metal material, universal joint

· Motor gear: 14T

· Spur gear: 36T

· Secondary gear ratio: 16T/30T

· High-speed gear ratio: 20T/20T

· Low-speed gear ratio: 14T/26T

· Driving gear: 11T

· Differential gear: 36T

· Portal axle spur gear: 15T/30T

· Clutch: Aluminum alloy hexagon 17mm

*Needed To Complete - RD10008 (5000mAh 3S lipo battery)
