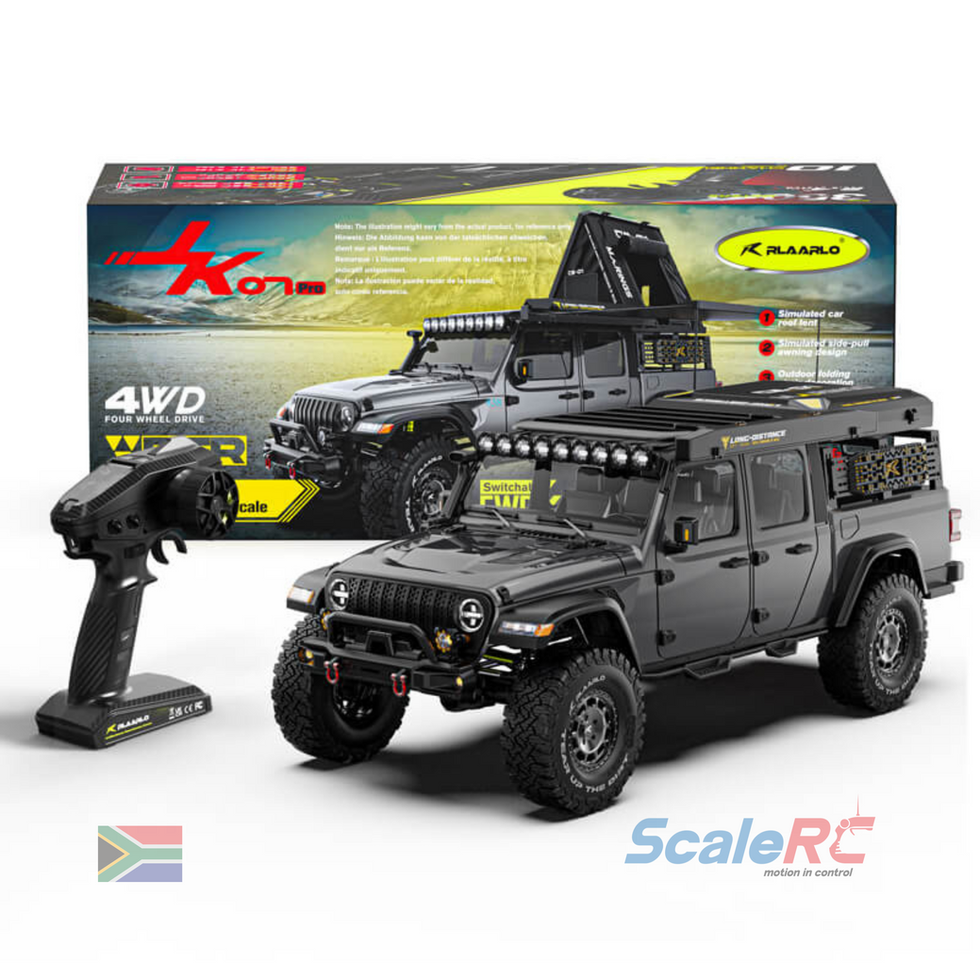

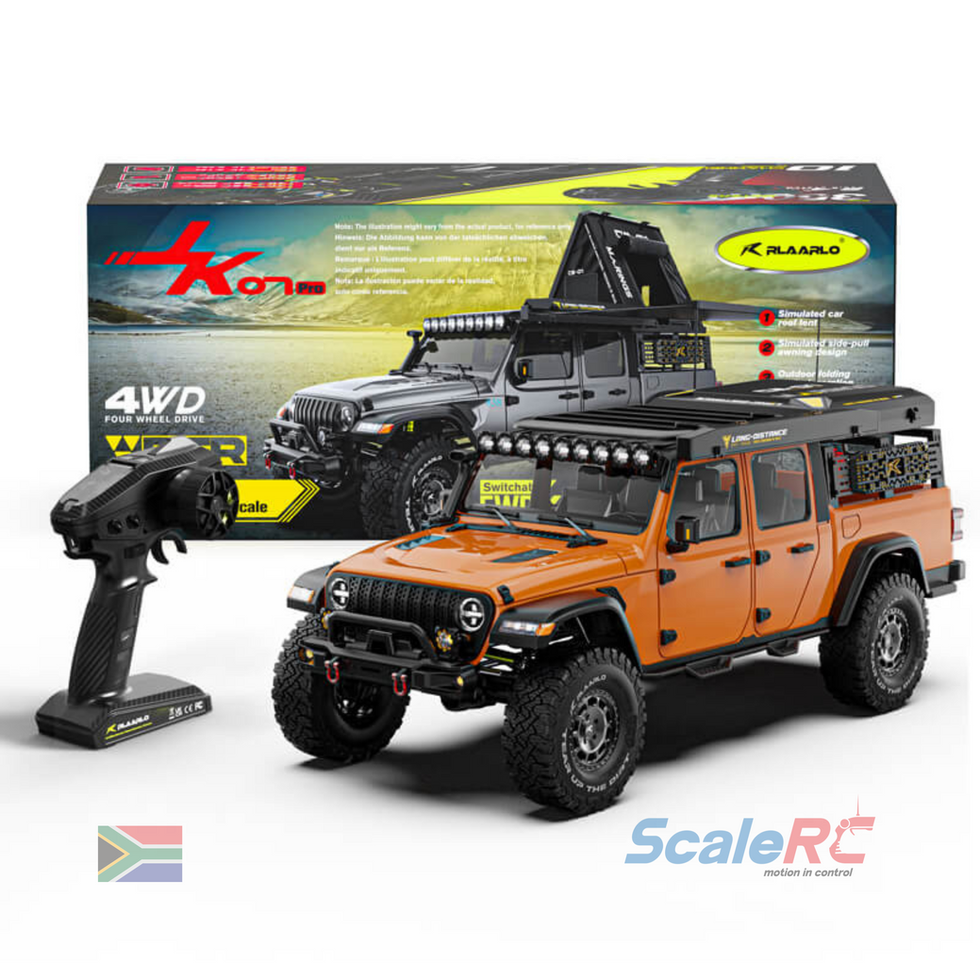

Rlaarlo 1/7 Scale Brushed JK-07 Pro RC Crawler

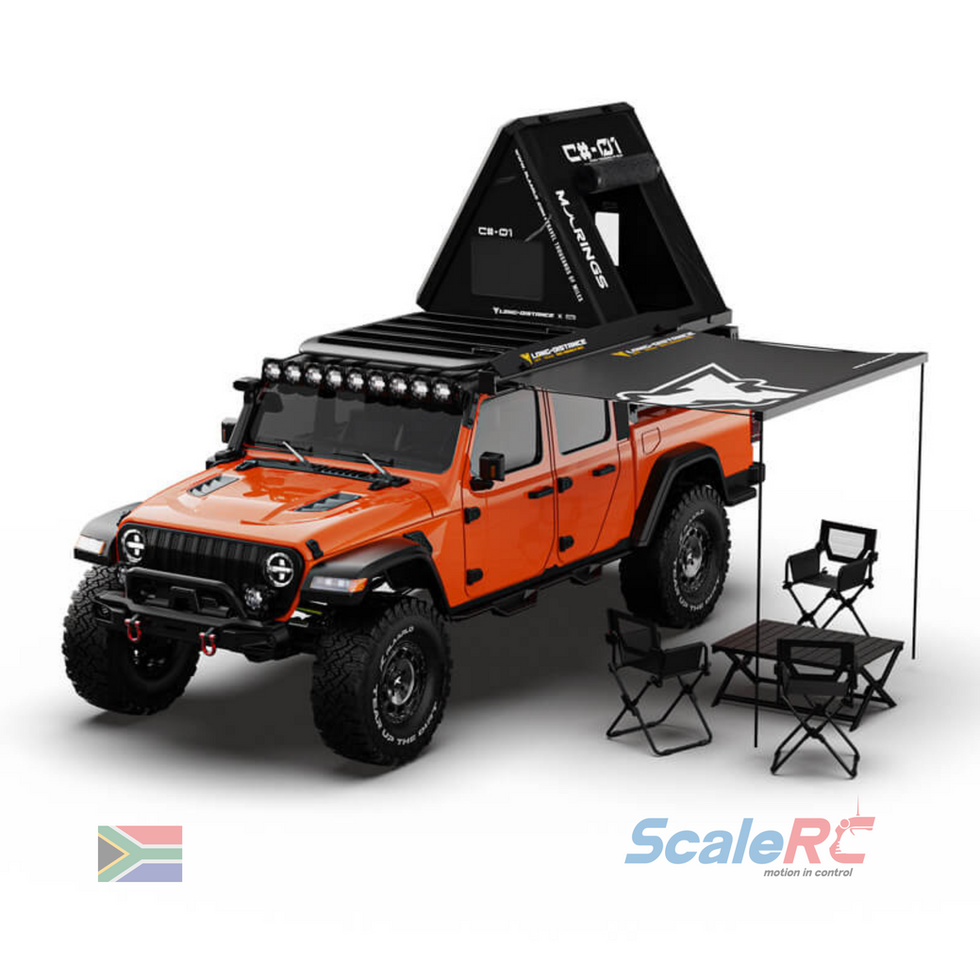

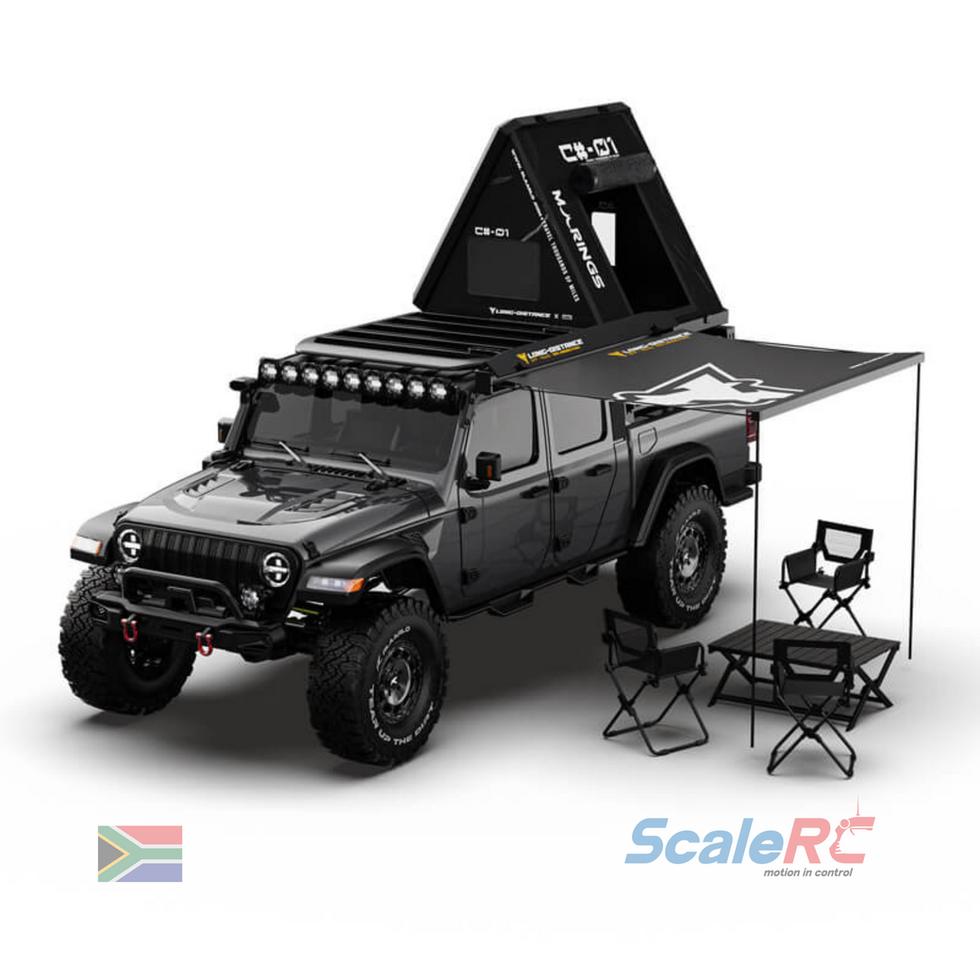

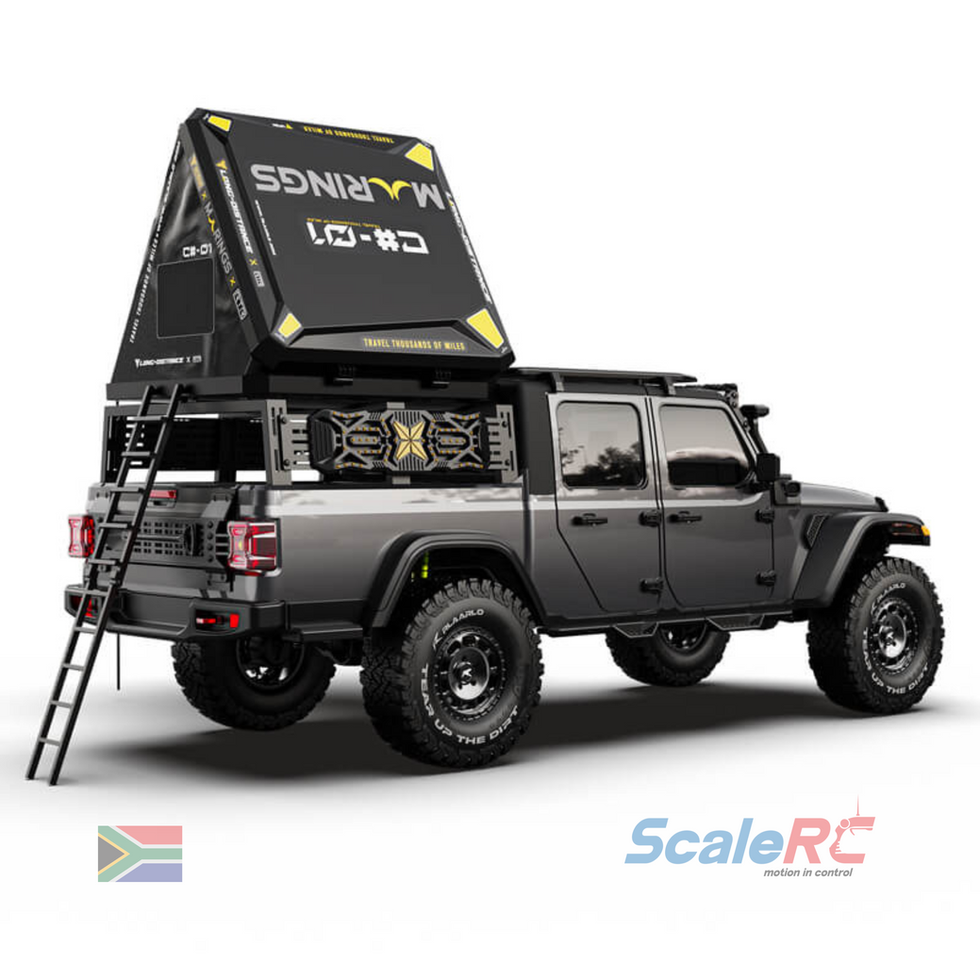

• JK07 Pro restores the appearance of the real car, equipped with a full vehicle linkage lighting system, simulation of side tents, gantries, luggage racks and other designs the ultimate simulation of details, to take you to open the adventure of truth and speed.
• Designed with the challenge of complex road conditions in mind, it features front and rear axles made of high-strength nylon and high-carbon steel alloy driveshafts, as well as a high suspension system to ensure stability and passing performance
• The drivetrain with chrome steel gear set and thrust bar design enables it to cope with any complex environment and fearless climbing challenges

1/7 Scale 4WD Brushed RC Crawler JK-07 PRO

· Dimension: 805mm*325mm*342mm

· Car body: 1.5mm PC

· Body Clip: Flip-up quick-release structure

· Light system: Full car linkage lighting

· Wheelbase: 498mm

· Drive System: Four-Wheel Drive with Differential Lock

· Approach angle: 56°

· Departure angle: 31°

· Ground clearance: 90mm

· Speed: 6-12km/h

· Weight: 8kg

· Motor: Brush motor 5280 (12500 revolutions/min)

· ESC: Brushed 140A

· Transmitter:  2.4 GHz 10-channel (Range up to 350 meters)

· Steering servo: 45kgHollow cup servo （Waterproof）

· Switching servo: 25g

· Micro Servo: 8g

· Steering wheel following linkage:  8g Reverse Servo

· Support Voltage: 7.4V

· Battery: Support Brushed 2-3 Cells

· Max battery length and width: 164*49mm

· Shock absorber: Height Adjustable Damper

· Shock absorber Size: maximum length131mm，pitch120mm，Compressed hole spacing80mm，Maximum outer diameter23.5mm，Shock absorber diameter 15.8mm

· Shock Spring: 19mm inner diameter, 89mm long (12 turns), wire diameter 1.5mm

· Automobile beam: 6mm thick high-strength CNC beam

· Connecting rod: 8mm stainless pull rod

· Servo connecting rod: Drag Link

· Servo fixed seat: Metal black servo mount

· Tires: 145mm*54mm

· Wheel Hub: 2.6 inches Wheel Hub,Wheel hub metal outer ring (inner ring and inner pressure ring made of nylon)

· Gearbox: High and low speed switchable; Front wheel drive, rear wheel drive, four-wheel drive switchable

· Front and Rear Axle Differential Lock: The front and rear axle differential can be independently switched

· Driveshaft: All metal material, universal joint

· Gear: 15TSteel Pinion Gear, 35T Steel Deceleration gear, 16T/30T Steel Secondary reduction gear ratio, 20T/20T Steel High speed gear ratio, 14T/26T Steel Low speed gear ratio, 11T powder metallurgy Differential driving gear, 36T powder metallurgy Differential driven gear, 15T/30T Gate bridge reduction gear

· Hexagonal connector: 17mm Aluminum alloy Hexagonal connector
